Setting up an NVR and IP camera setup is a powerful way to enhance your property's security with modern surveillance technology. Whether you're securing a home or a business, understanding the key components and how they interact is crucial for an effective system. This guide will help you navigate the process, offering clear instructions and valuable insights to ensure your setup is seamless and efficient. Get ready to create a robust, reliable security solution tailored to your needs.
What is an NVR and IP Camera System?
A Network Video Recorder (NVR) is a centralized device for recording and managing video feeds from IP cameras. Unlike traditional DVRs, which work with analog cameras, NVRs operate in IP-based surveillance networks.
An NVR setup integrates various components, including IP cameras, Ethernet cables, a network router, and a monitor. The NVR stores video footage digitally, allowing users to view, replay, and download recordings when needed.
A common configuration involves connecting IP cameras directly to the NVR using Ethernet cables. Power over Ethernet (PoE) technology simplifies this by transmitting power and data through a single cable. The NVR also connects to a router for internet access and to a monitor for live viewing and playback. This setup is ideal for both residential and commercial security needs.
Types of NVR
NVRs come in two main types: PoE NVRs and non-PoE NVRs. The distinction lies in how they power connected cameras and transmit data.
PoE NVR
A PoE NVR has built-in PoE ports, allowing cameras to connect directly through Ethernet cables. This single-cable setup transmits data and supplies power simultaneously, eliminating the need for separate power sources. PoE NVRs are ideal for straightforward installations, especially in smaller setups like homes or small businesses.
Non-PoE NVR
A Non-PoE NVR, on the other hand, lacks built-in PoE capabilities. To connect cameras, you'll need an external PoE switch or individual power adapters. While this adds complexity, non-PoE NVRs often feature advanced detection tools, such as built-in scan functions, to locate and configure cameras on the network. This flexibility is advantageous for larger, more complex systems.
When choosing between these types, consider your setup's size and wiring needs. With the right NVR, connecting cameras becomes a seamless process. Next, let's dive into the step-by-step guide for an NVR camera system setup.
How to Connect IP Camera to NVR
Connecting IP cameras to an NVR varies based on whether you're using a PoE or non-PoE model. Below are step-by-step methods for both setups.
Preparation for NVR Connection
Before starting, ensure your NVR is compatible with your IP cameras. Key points to check include:
- Protocol Compatibility: Look for ONVIF support to ensure devices from different manufacturers work together.
- Resolution Limits: Ensure the NVR supports the camera's resolution. Adjust settings in the camera's web interface if needed.
- Network Configuration: Assign unique IP addresses to each device and ensure the NVR and cameras share the same default gateway.
Connecting IP Cameras to PoE NVR
A PoE NVR simplifies the connection process by powering cameras directly. Follow these steps:
- Power the NVR: Connect the NVR to a power source and ensure it's operational.
- Link to the Router: Use an Ethernet cable to connect the NVR to your network router, enabling internet access.
- Connect Cameras: Plug each camera into a PoE port on the NVR using Ethernet cables. These connections power the cameras and transmit video.
- Monitor Connection: Use a VGA or HDMI cable to link the NVR to a monitor. Set the monitor to the correct input mode.
Once all connections are complete, your PoE NVR system will be fully operational, ready for live monitoring and recording. For homeowners and small businesses, adding eufy NVR security cameras to your PoE NVR setup can boost performance. eufy cameras offer advanced features that enhance surveillance quality while keeping the setup process simple and efficient, ensuring reliable security for your property.
Connecting IP Cameras to Non-PoE NVR
Non-PoE NVRs require additional steps and equipment, such as a PoE switch. Here's how to set it up:
- Connect the PoE Switch to the Router: Link the switch's LAN port to your router using an Ethernet cable.
- Connect Cameras: Plug each IP camera into the PoE switch's RJ45 ports. The switch provides power and data connectivity.
- Link the NVR to the Router: Connect the NVR to the router with another Ethernet cable.
- Monitor Connection: As with the PoE NVR, use a VGA or HDMI cable to connect the NVR to a monitor.
Finally, add cameras to the NVR's system via its built-in interface or following the instruction manual. This configuration suits larger-scale setups or installations requiring flexibility.
Regardless of the NVR type, verifying connections and addressing compatibility issues early will save time. Using an NVR setup diagram can also help visualize the entire system, ensuring nothing is overlooked.
How to Connect PoE Cameras to NVR
Setting up your PoE camera system might sound technical, but it’s actually pretty simple once you’ve got everything ready. Let’s walk through the process step by step using the eufy NVR system.
Step 1: Get Everything Ready
Tools Required:
- Monitor/TV
- Router

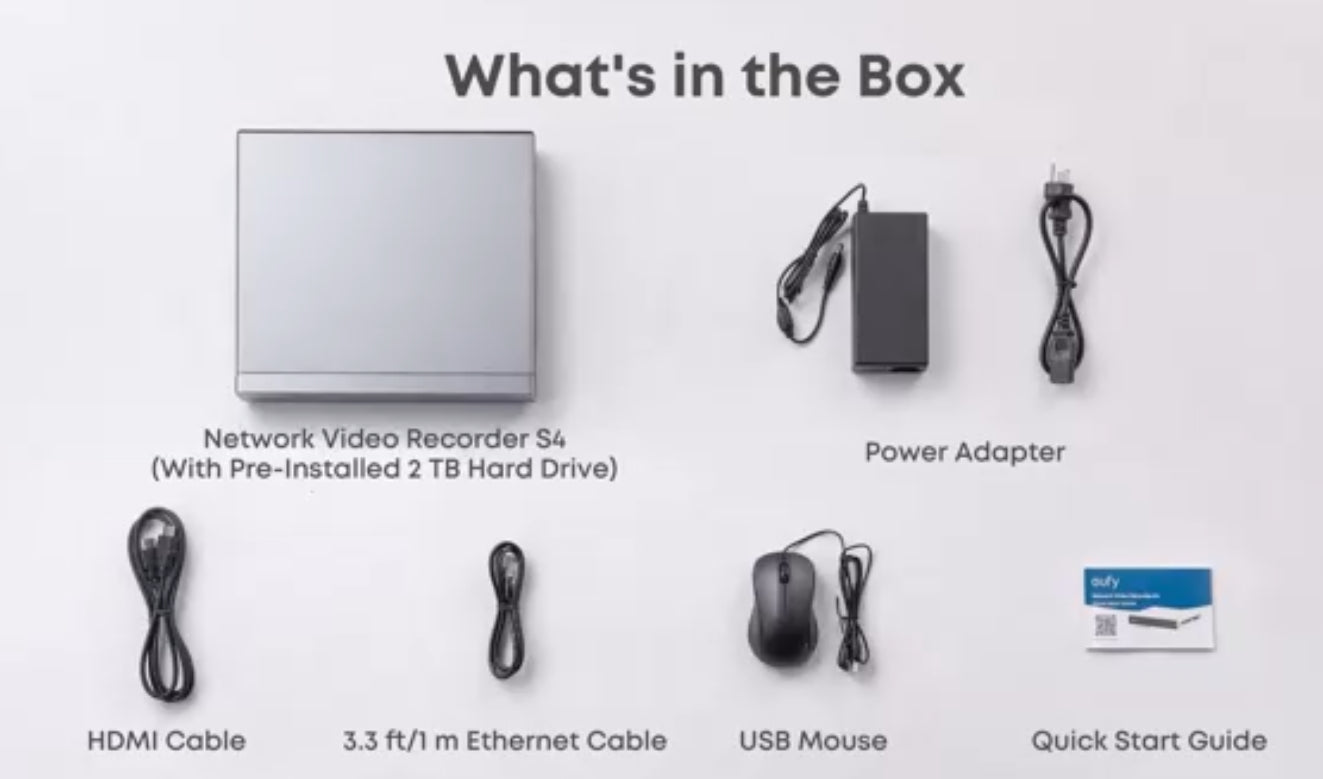

Hardware Supplies:
- Network Video Recorder
- Power Adapter
- HDMI Cable
- Ethernet Cable
- USB Mouse
Step 2: Choose the Perfect Location
Place the NVR near a power outlet, your router, and the monitor. Make sure there’s a bit of space (at least 10 cm) around the NVR for ventilation, and place it on a flat, stable surface.
Step 3: Plug Everything In
Connect the NVR to your monitor with the HDMI cable, and plug in the USB mouse. Then use Ethernet cables to connect your cameras to the NVR’s PoE ports. Finally, connect the NVR to your router and plug it into power.
Tip: If you’re adding more than 8 cameras, you can connect a PoE switch directly to the NVR to expand the setup.
Step 4: Set Up the NVR Access
Set up the NVR with your monitor or TV.
Once everything’s powered up, follow the on-screen instructions on your monitor to complete the setup. Create your account and set a password.
Connect NVR to the eufy APP
To view your cameras remotely, download the eufy Security app, make sure your phone is on the same Wi-Fi network, and follow the prompts to add the NVR. You’ll scan a QR code and press the SYNC button on the back when you hear a beep.
Step 5: Test the Camera Connection
After setup, you should see live footage from your cameras on the monitor and in the app. Make sure each camera is positioned correctly, and adjust the angles if needed to get the best coverage.
How to Replace the Hard Drive in Your NVR
If you want more storage, or your current drive is acting up, you may need to replace or upgrade the hard drive in your NVR.
Step 1: Prepare the Tools
- NVR
- New Hard Drive
- Phillips Head Screwdriver
Note: Before you remove a hard drive, ensure all critical information is backed up.
Step 2: Turn off the NVR and Disconnect From the Network
Make sure your NVR is completely turned off. Unplug the power, Ethernet, and HDMI cables—basically, disconnect everything so you can safely open the device.
Step 3: Remove the Hard Drive
Flip the NVR over and use the screwdriver to remove the five screws that hold the casing together. Carefully lift off the top cover and set it aside.
Inside, you’ll see the existing hard drive connected via two cables: one for power, one for data. Gently unplug both.
Turn the unit over again, and while holding the hard drive steady with one hand, unscrew the mounting screws underneath to remove it. Be careful not to drop it.
Step 4: Install the Hard Drive
Take your new hard drive and line it up with the screw holes. If there are any silicone plugs in the holes, remove them first. Hold the drive in place, insert the screws, and tighten them to secure it. Then reconnect the SATA and power cables you unplugged earlier.
Once everything’s in place, put the cover back on and screw it shut.
Step 5: Power It Back On
Reconnect all the cables—power, Ethernet, HDMI, everything. Turn the NVR back on and wait for it to boot up.
Step 6: Verify the Hard Drive Connection
Once the system is running, go into the NVR’s settings on the monitor or the eufy app. Make sure the new hard drive is detected. If it’s showing up, you’ll likely be prompted to format it—go ahead and do that so it’s ready to start recording.
Conclusion
In conclusion, a well-planned NVR and IP camera setup provides reliable, high-quality surveillance for any property. By understanding the various components, types of NVRs, and connection methods, you can ensure a smooth and efficient installation. Whether you choose a PoE or non-PoE NVR, following the proper setup steps will help you build a robust security system.
FAQs
How to Configure NVR with IP Camera?
To configure an NVR with an IP camera, connect both devices to the same network. Assign unique IP addresses to avoid conflicts and ensure the NVR detects the camera. Adjust network settings like the default gateway and resolution if needed. Follow the NVR's interface prompts to add and configure the camera for recording.
Can You Mix and Match IP Cameras with NVR?
Yes, you can mix and match IP cameras with NVRs, provided they share compatibility standards like ONVIF. This ensures smooth communication between devices, even if they are from different manufacturers. Always confirm that the camera's resolution and features are supported by the NVR before setup to avoid performance issues.
Does NVR Support IP Cameras?
Yes, NVRs are specifically designed to support IP cameras. They record and manage digital video streams from connected cameras over a network. Features like compatibility with various resolutions and ONVIF support allow NVRs to work seamlessly with most modern IP cameras, making them ideal for advanced surveillance systems.
How to Install PoE IP CCTV Cameras with NVR Security System?
To install PoE IP CCTV cameras, connect the cameras directly to the PoE ports on the NVR using Ethernet cables. These cables provide both power and data transmission. Next, link the NVR to a router and monitor. Configure the cameras through the NVR's interface for live monitoring and recording.
